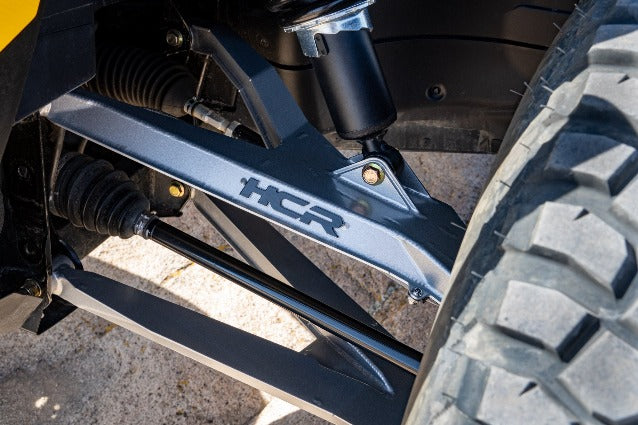

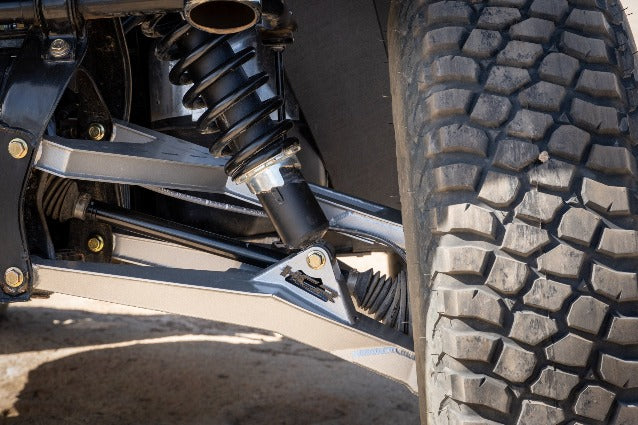

HCR is proud to introduce the all new CAN-AM Defender front forward high clearance a-arms and high clearance rear a-arms both with built in lift. The front arms are pushed forward 2.5” to clear a larger tire. To build on top of that we built the front and rear control arms to have up to a 3” lift. This lift is built into the arms to make the installation process a breeze. No pesky brackets to deal with. Designed to tackle all types of terrain, these arms are built out of our proprietary material that are 30% stronger then 4130 Chromoly. To complement the strength and lift the high clearance lower arms are sure to keep you from high centering and keep you moving.
- Front Arms are not built with Sway Bar Mounts
- For optimal clearance and performance a 4+3 wheel is recommended.
- Some manufacturers 5+2 wheel will work but confirm true off set
- 23' models must use spec'd ZBROS Exit Shocks (OEM shocks will not work).
FEATURES
- Can-Am Defender Forward A-Arm Suspension kit will add lift without adding shock brackets.

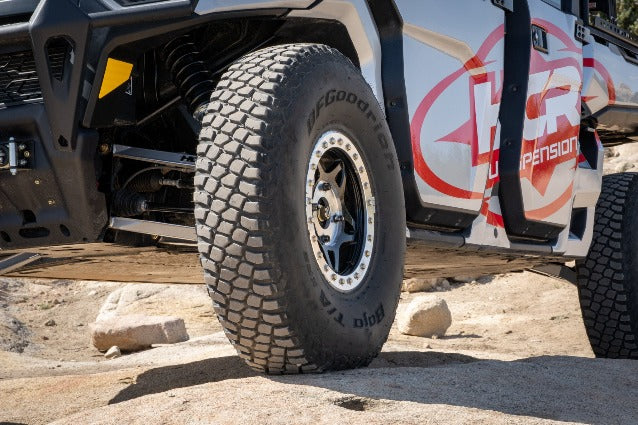

- Pushes front arms forward 2.5" allowing for more clearance in order to run larger tires. **Depending on tire manufacturer will fit up to 35" tires*
- Laser Cut construction for precise fit and finish
- CNC'd Chromoly mounting points for increased integrity
- High Clearance Boxed Front A-Arm Design 0.500" added ground clearance
- Each piece is Tig Welded by hand for strength and aesthetics
- Reuse of OEM ball joints to maximize low speed steering ease & smooth travel with less maintenance
- 100% Proudly Made in the U.S.A
- 100% Bolt-on installation using factory mounting points
CONFIRM FITMENT PART# DEF-05300 / DEF-05310
- Can-Am Defender HD 8 XT Cab : 2018+
- Can-Am Defender HD 10 XMR : 2018+
- Can-Am Defender HD 10 XT Cab : 2018+
- Can-Am Defender MAX HD 8 XT Cab : 2018+
- Can-Am Defender MAX HD 10 XT Cab : 2018+
- Can-Am Defender MAX HD 10 XMR : 2019+
- Can-Am Defender MAX Lone Star Edition : 2018+
- Can-Am Defender MAX Limited : 2020+
***If trying to convert any Non-Cab models to Cab model width, please call for more information.
KIT Includes:
- 4 Front Control Arms
- 4 Control Arms
- Hardware
