Diode Dynamics SS5 Roof CrossLink Lightbar Kit for 2017-2025 Can-Am Maverick X3

0 Review(s)

Your Price: $79.95

Please Always Call to Verify Stock

Free Shipping.

Part Number:10249

Choose Your Power Level

Choose Your Color

Quantity

Description
Customer Reviews

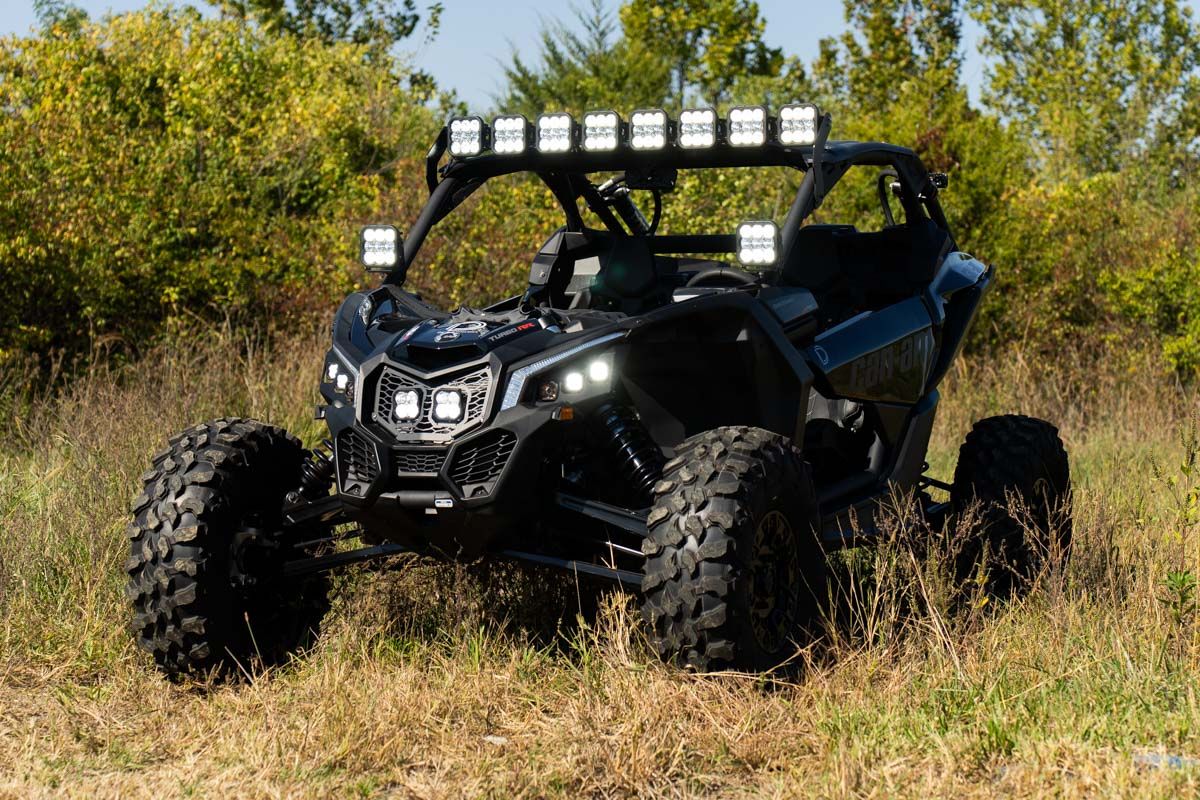

Perfect Fitment. The CrossLink Lightbar Kit for the 2017-2025 Can-Am Maverick X3 from Diode Dynamics allows you to mount eight linked SS5 LED pods above the roof. These application-specific brackets were CAD-designed to bolt into place using factory mounting points near the roof. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
SS5 Backlight Functionality
Selectable Backlight. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

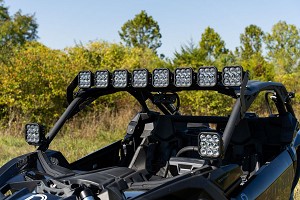

CrossLink. Our patent-pending CrossLink technology allows you to link the eight SS5s included in this kit together to create a single lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.
Control through Aux Switches. Both kits include an aux switch adapter wire that connects to the harness and allows you to control your lights using an aftermarket aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have an aftermarket aux switch bank, you will use the toggle switch adapter wire included with the harness to mount a switch.
Functional Output. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

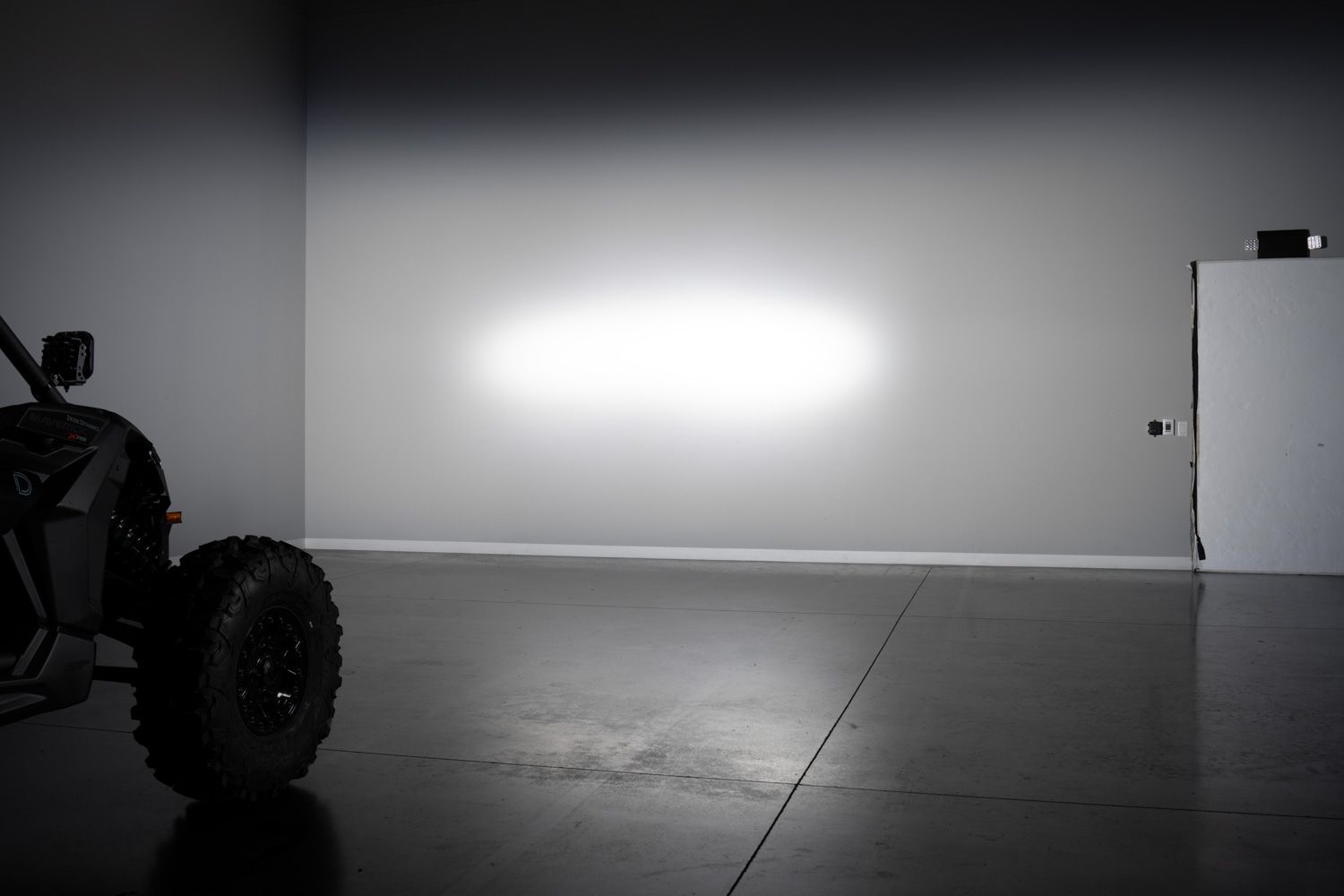

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

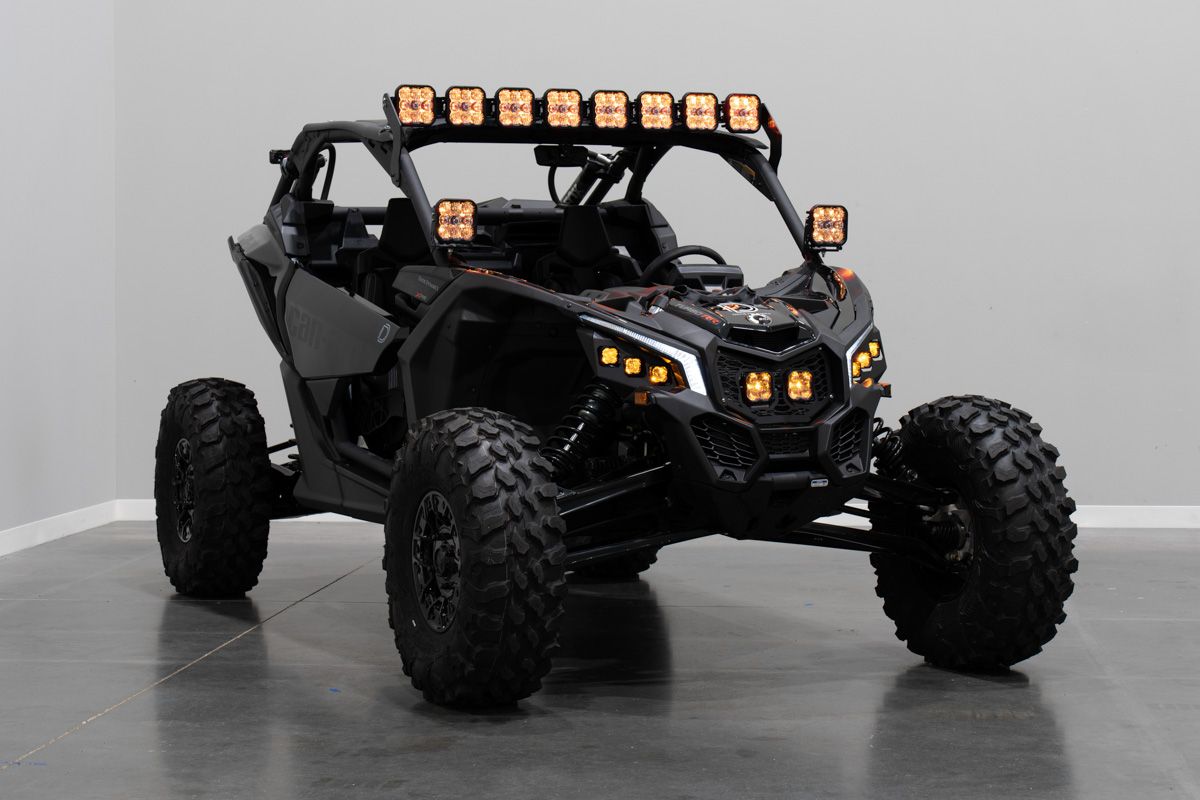

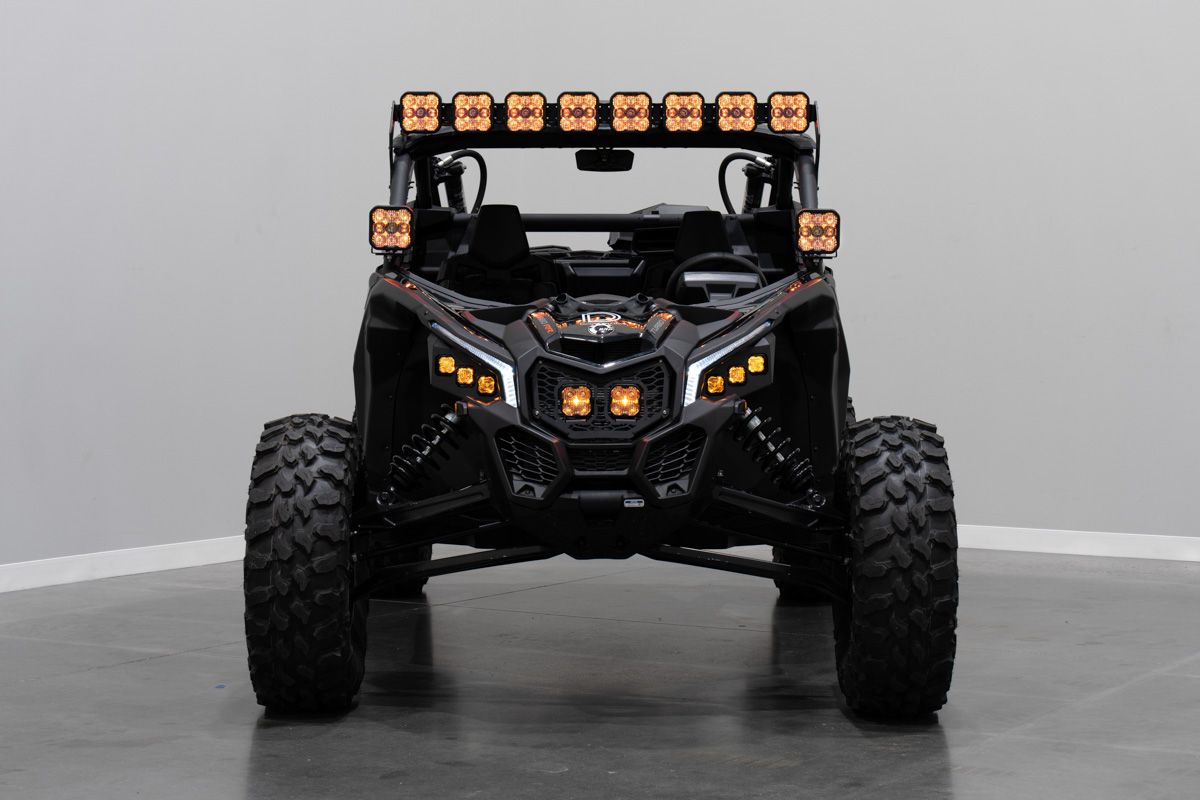

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS5 Pods.
Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.
Snap-on covers. We also offer snap-on covers for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Features

Allows you to mount eight pod linked lightbar above the roof
Bolt-on fitment on 2017-2025 Can-Am Maverick X3
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Assembled in USA

In the Box:

Two (2) Can-Am Maverick X3 Roof Brackets
Eight (8) Stage Series 5” LED Pods
Seven (7) CrossLinks Hardware
One (1) CrossLink Support
One (1) CrossLink Endmount Kit
One (1) DT 8-Pod connecting harness
One (1) Ultra Heavy Duty Single Output Harness
Installation Guide
