Diode Dynamics SS3 Bumper LED Pod Light Kit For 2020-2023 Polaris RZR Pro Models

0 Review(s)

Your Price: $29.95

Please Always Call to Verify Stock

Free Shipping.

Part Number:7609

Optic and Color

Power Level

Quantity

Description
Customer Reviews

Features

Allows you to mount two LED pods in lower bumper area
Bolt-on fitment on 2020-2023 Polaris RZR Pro XP, Pro R and Turbo R
Ultra-high intensity, with custom-engineered TIR optics
Torture-tested, heavy-duty construction
Assembled in USA

Overview

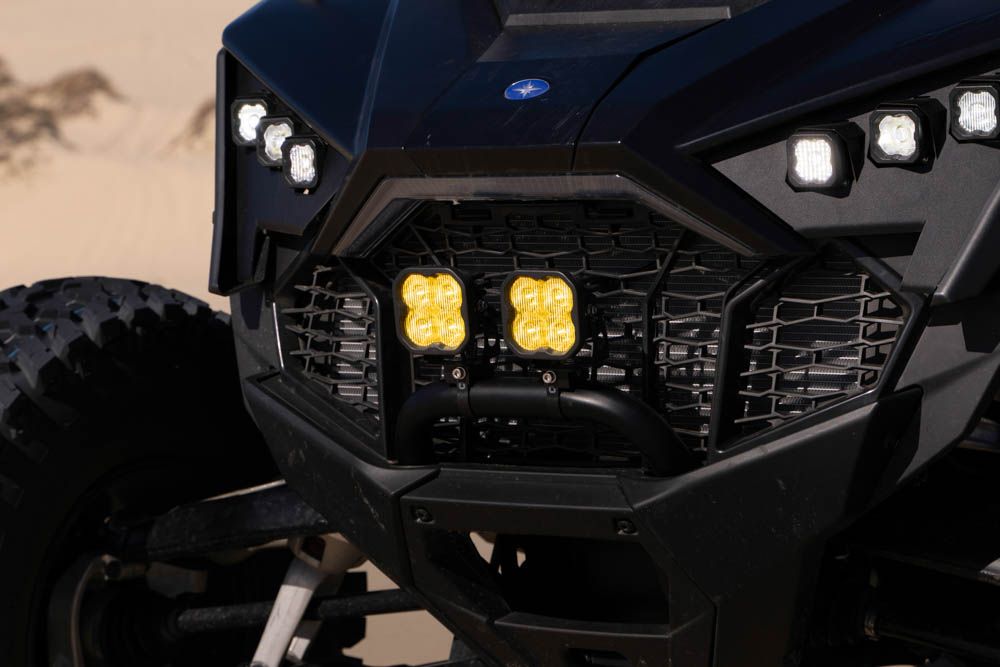

Designed for Performance. The Bumper LED Pod Kit for the 2020-2023 Polaris RZR Pro from Diode Dynamics allows you to mount two SS3 LED pods on the factory roll bar in the lower bumper area without any cutting or drilling. If you ride in dusty conditions, this is the perfect kit for you. The lower mounting point cuts through dust and fog, giving you more visibility in undesirable conditions.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

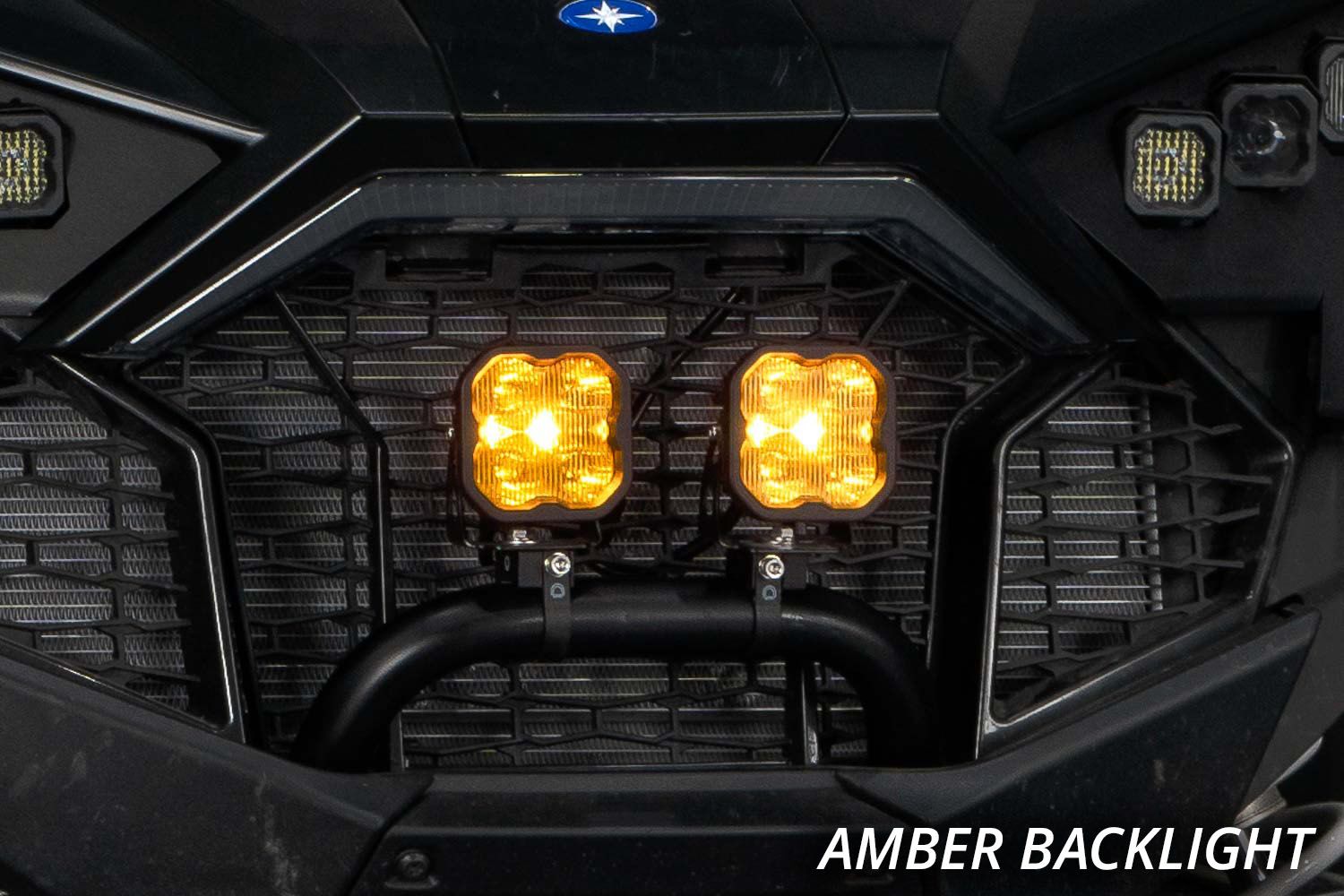

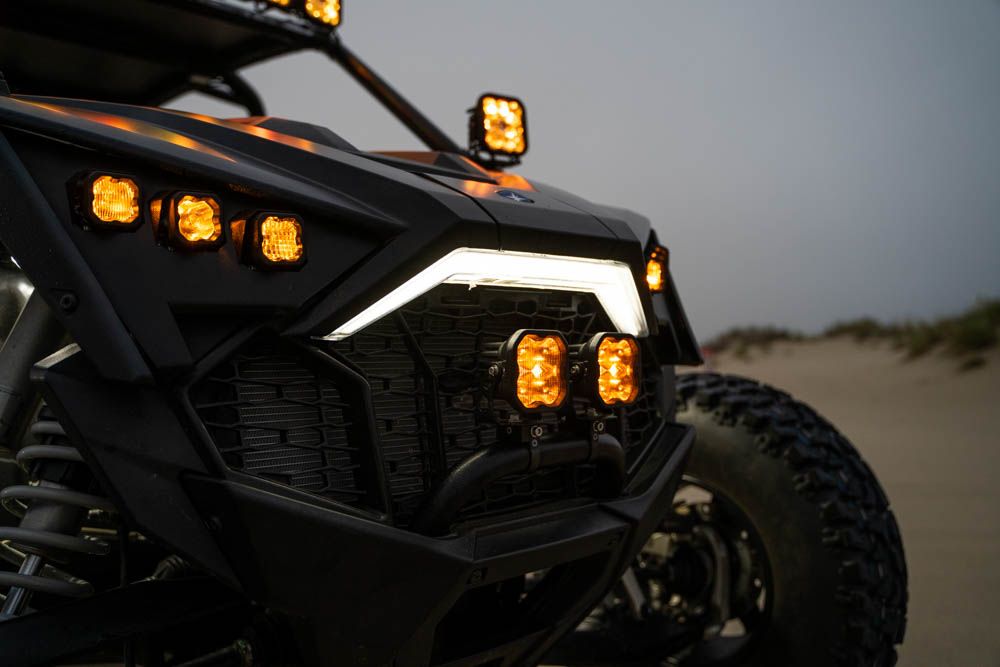

Backlight Functionality. The Stage Series 3" LED Pods included in this kit feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Functional Output. Stage Series beam patterns were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

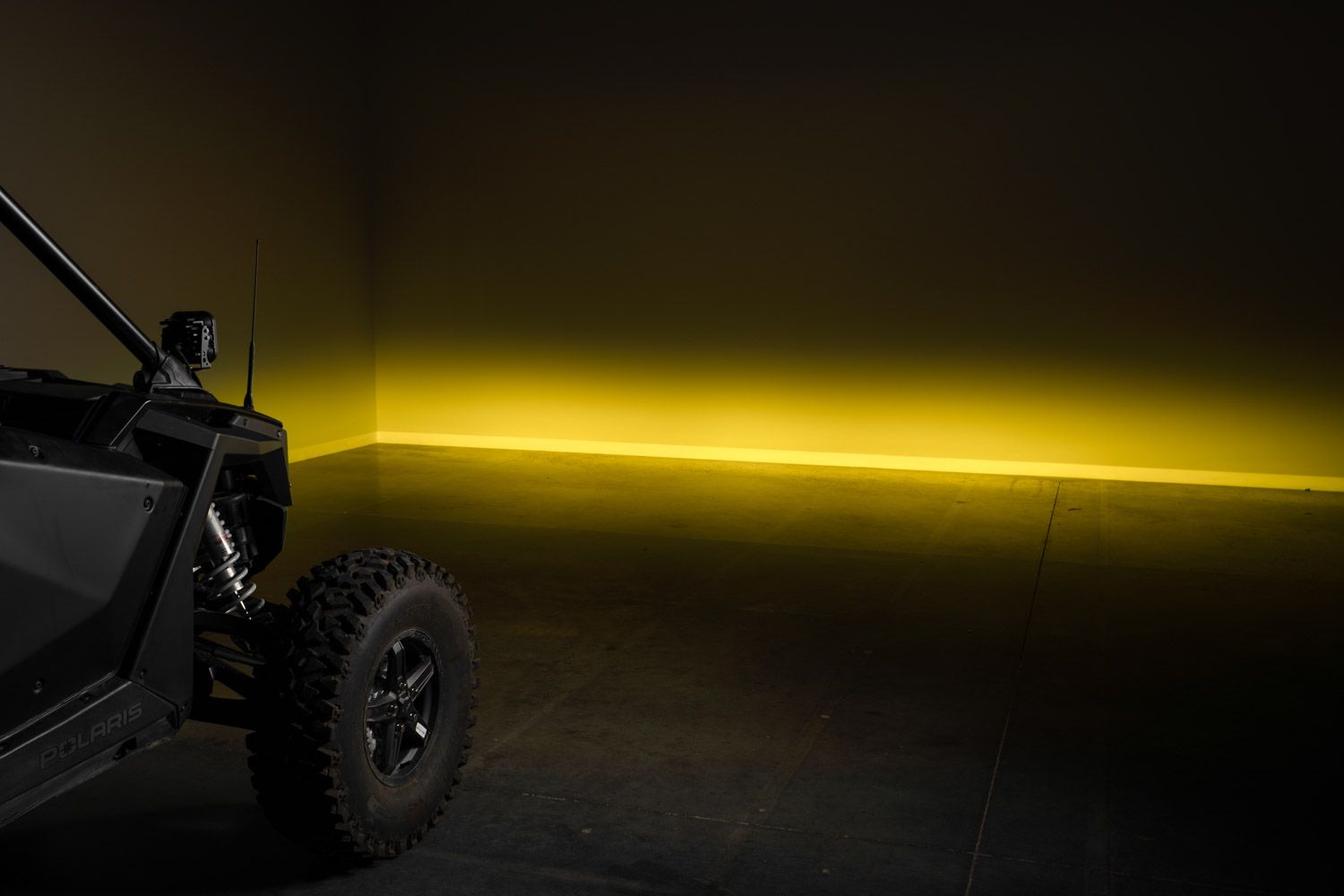

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your RZR. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather and dusty conditions.
Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.
White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS3 Pods.
Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Sport Beam

Snap-on covers. We also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way!
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

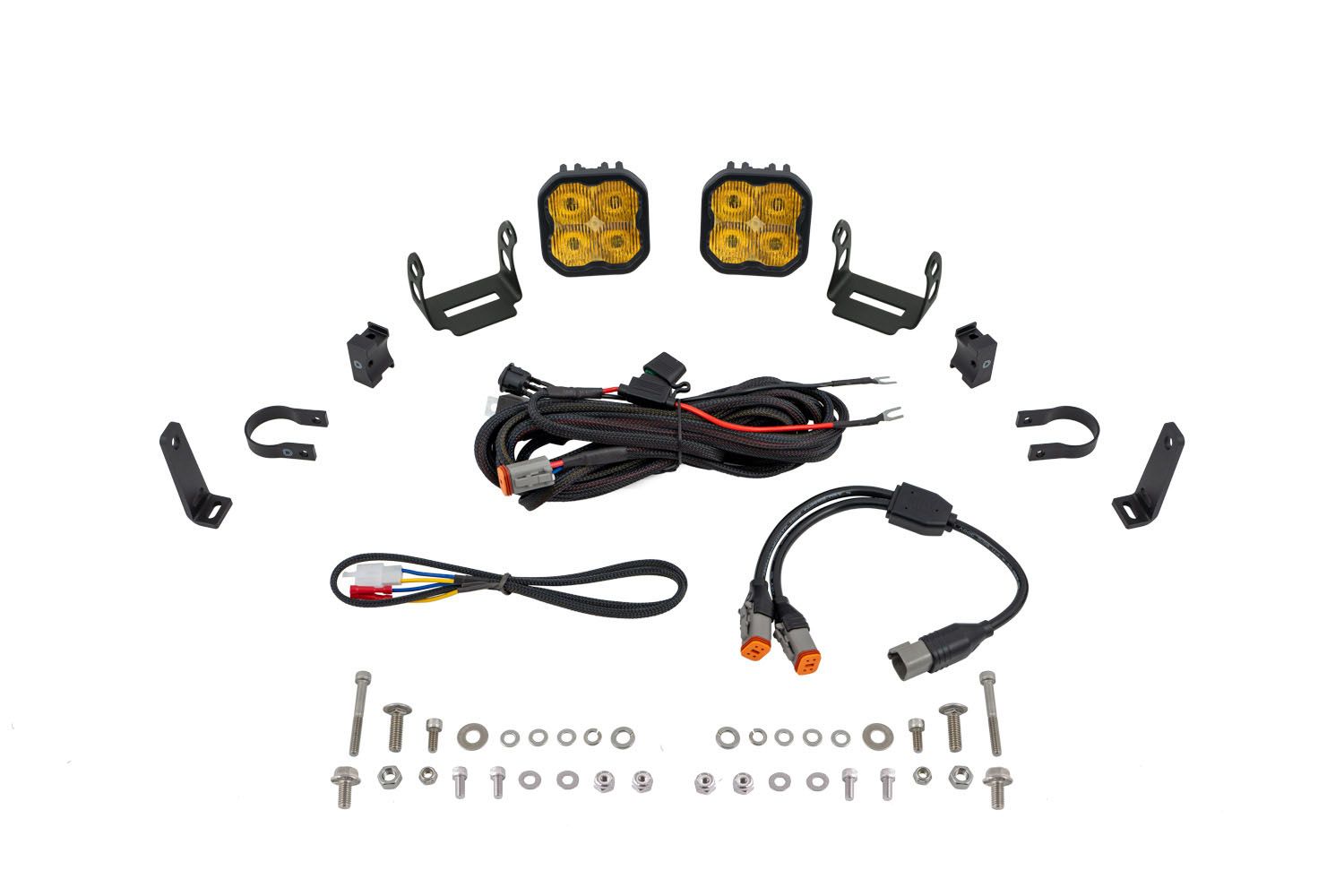

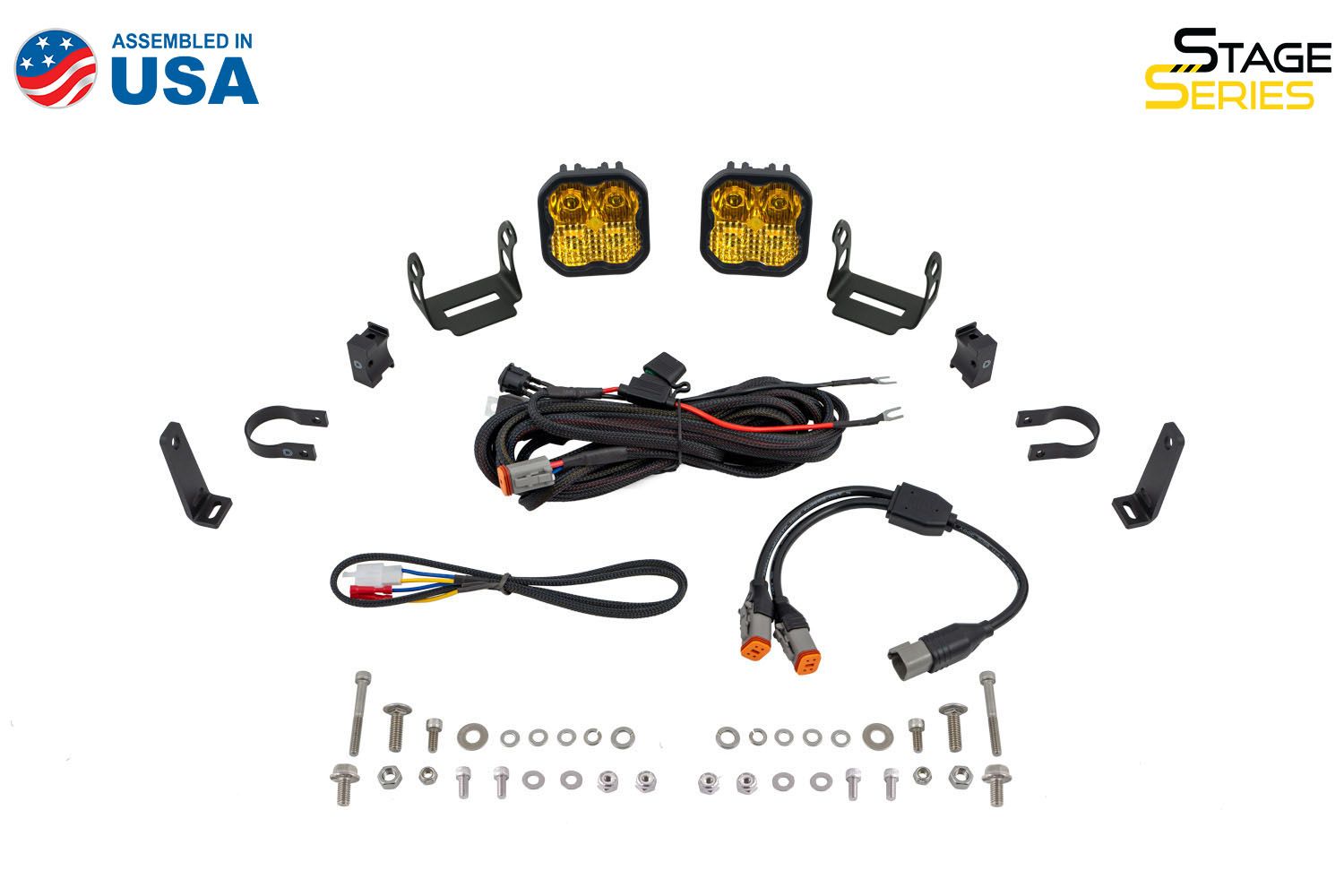

In the Box:

Two (2) SS3 3” LED Pods

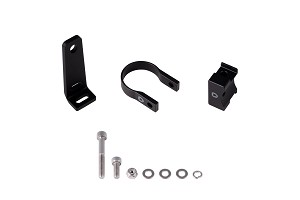

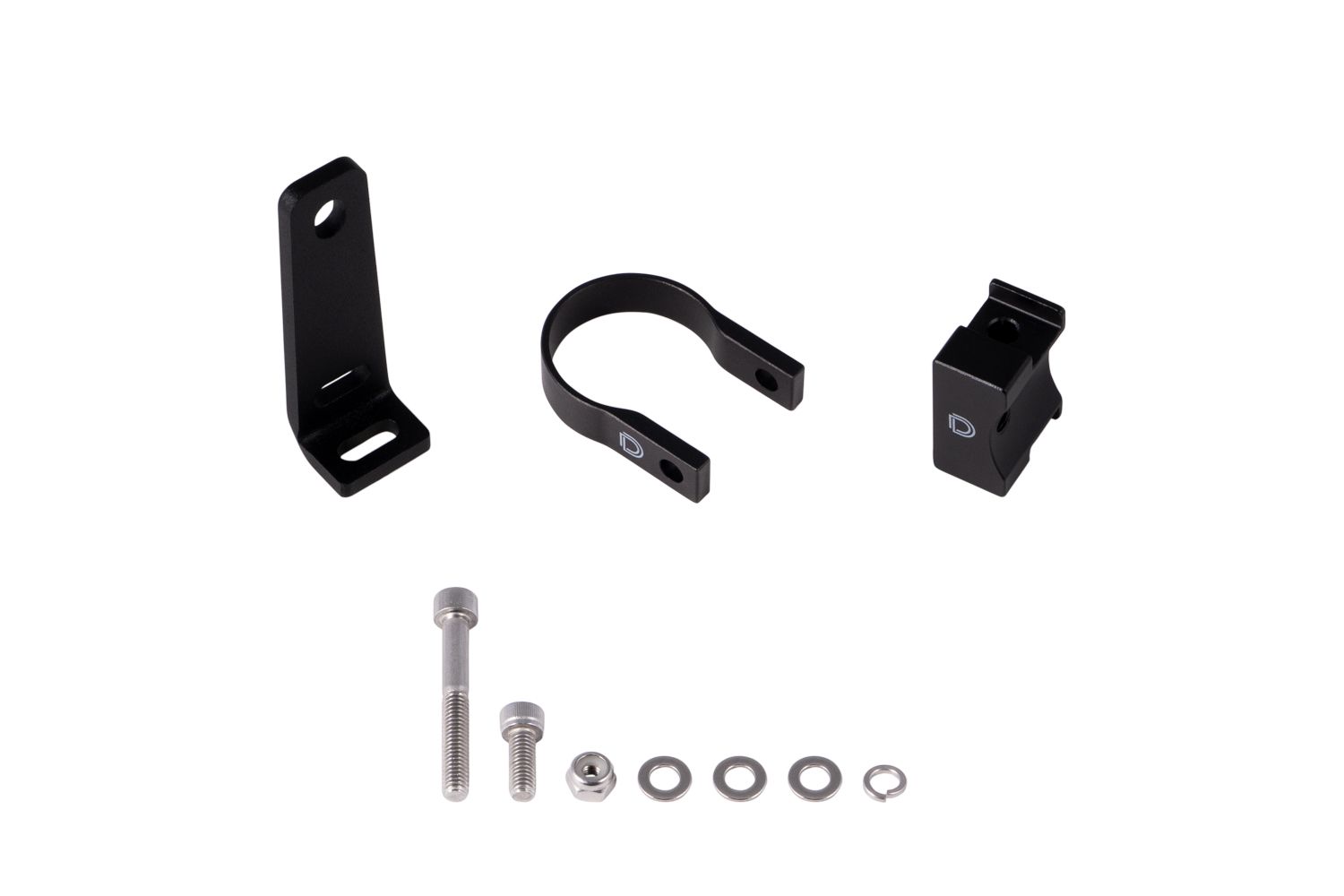

Two (2) 1.5" Roll Bar Mount Kits
One (1) Heavy Duty Single Output 4-pin Wiring Harness
One (1) DT 4-pin Splitter
Included Hardware
Installation Guide

Quantity: Two (2)

Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit is compatible with the following models:
RZR Pro XP - Sport, Premium, Ultimate 2020-2023
RZR Turbo R - Sport, Premium, Ultimate 2022-2023
RZR Pro R - Premium, Ultimate, Troy Lee Designs 2022-2023
Make: Polaris
Model: RZR Pro
Years: 2020, 2021, 2022, 2023

SPECIFICATIONS

NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics Peak Beam Intensity
(candela) Illuminance
Color Temp (CCT): 3000K, 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 1.3
Product Weight (lb): 5.1
Shipped Weight (lb): 5.1
Make: Polaris
Model: RZR Pro
Years: 2020, 2021, 2022, 2023
